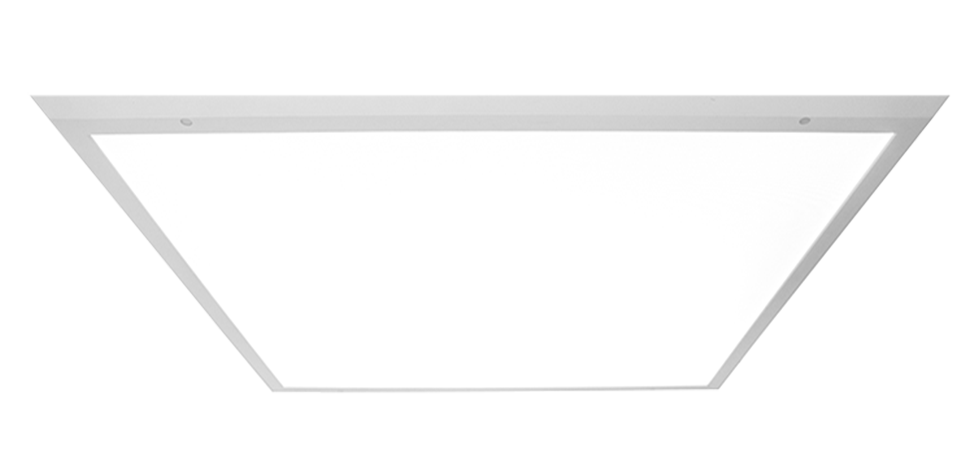

Evos Surface Mount Panel G5
Ecopoint’s Surface Mount Panel is an addition to the popular Edge-lit Panel family which avoids the need for additional accessories for mounting on plaster and other non-concrete surfaces (a cavity is required for the remote driver). Available in 600x600 and 1200x300 sizes with a range of light outputs and colour specifications, all of them with low-glare ratings (UGR). These panels offer the look, efficacy, lifespan and colour consistency of the new generation Evos Edge-lit panel, with the versatility of a screw-affixed luminaire.
Features
Warranty: 5 Yrs
Construction: Extruded alum. frame, PMMA micro-prism optics, optional gasket kit (for positive/negative pressure rooms)
Standard Mounting: Surface-mounting
Life Prediction (hrs): L90 @ 54,000 hrs | L80 > 100,000 hrs
Ingress Protection: IP54 (room-side), IP65 option
Applications
Healthcare (with gasket kit)
Commercial
Retail
Technical Data
PRODUCT CODE | DIMENSIONS | Luminous Flux | POWER | Optic/Beam | Colour Temperature | Colour Rendering |
|---|---|---|---|---|---|---|
ESP12X3WS40G5 | 1215 x 315 x 12 mm | 1,300~3,900 lm | 13~40 W | Micro-prismatic, UGR19 | 4000K | ≥97 |
ESP12X3W940G5 | 1215 x 315 x 12 mm | 1,540~4,730 lm | 13~40 W | Micro-prismatic, UGR19 | 4000K | ≥94 |
ESP6X6WS40G5 | 615 x 615 x 12 mm | 1,300~4,100 lm | 13~40 W | Micro-prismatic, UGR19 | 4000K | ≥97 |
ESP6X6W940G5 | 615 x 615 x 12 mm | 1,550~4,780 lm | 13~40 W | Micro-prismatic, UGR19 | 4000K | ≥94 |
