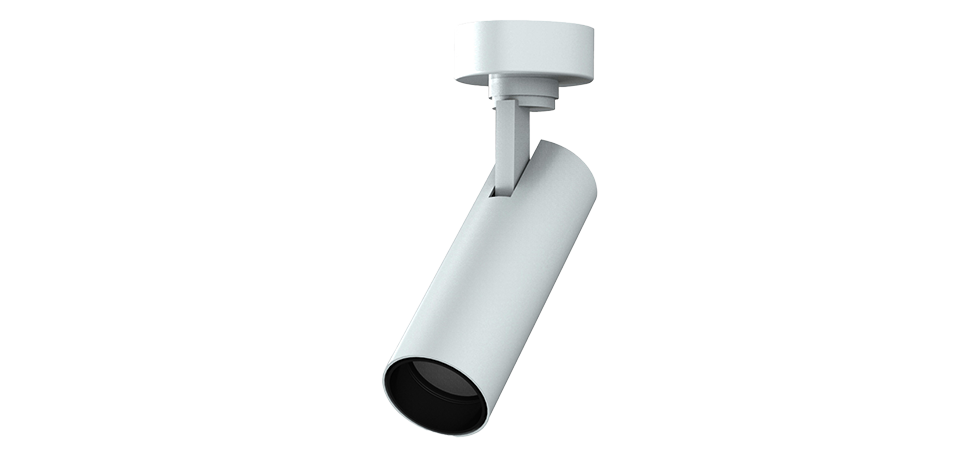

Optatube 60
OptaTube 60 is simple and versatile, with performance to match its compact dimensions. A variety of mounting options means that you can deliver a range of lighting effects and implementations while maintaining a common aesthetic. High colour performance is standard,
with an option for even higher specifications for colour-critical applications. Choose either the black or white option to suit your interior colour scheme
Features
Warranty: 5 years
Construction: Aluminium (extruded), Polycarbonate (PC)
Metal Finish: Powdercoated
Standard Mounting: Suspended, Surface-mounted
Life Prediction (hrs): L80 > 76,000 (B10)
Ingress Protection: IP20
Impact Protection: IK02
Applications
Office
Commercial
Hospitality
Retail
Technical Data
PRODUCT CODE | DIMENSIONS | Luminous Flux | POWER | Optic/Beam | Colour Temperature | Colour Rendering |
|---|---|---|---|---|---|---|
ETU60B15W940-36D-TR | ø62 x 180 mm | 1,530 lm | 15 W | 16deg / 24deg / 36deg | 4000K (3000K optional) | ≥ 90 |
ETU60B15W940-36D-SS | ø62 x 180 mm | 1,530 lm | 15 W | 16deg / 24deg / 36deg | 4000K (3000K optional) | ≥ 90 |
ETU60B15W940-36D-SD | ø62 x 174 mm | 1,530 lm | 15 W | 16deg / 24deg / 36deg | 4000K (3000K optional) | ≥ 90 |
ETU60B15W940-36D-PD | ø62 x 184 mm (1.0 m suspension) | 1,530 lm | 15 W | 16deg / 24deg / 36deg | 4000K (3000K optional) | ≥ 90 |
