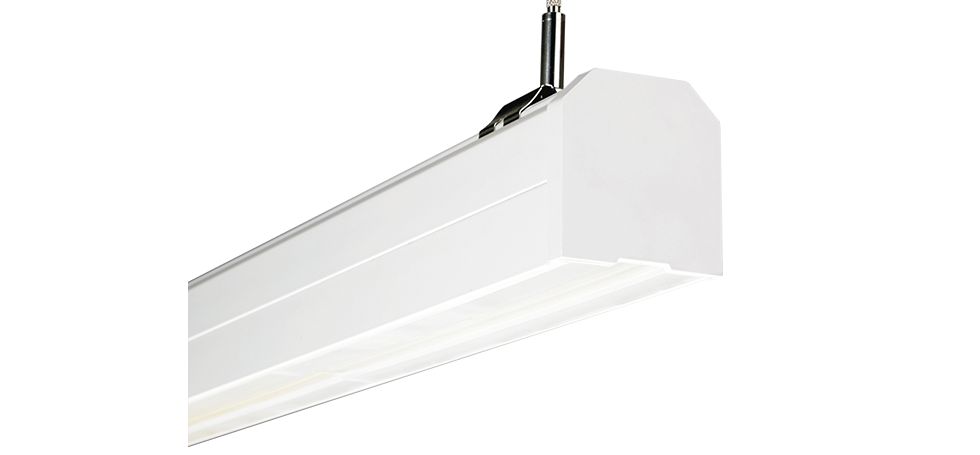

Optatrunk
A trunk-lighting system can be the most versatile tool at a lighting designer’s disposal, with many possible configurations and options to suit a variety of applications. The simple two-piece plug-and play construction makes for rapid installation. Select from three different flux packages and five different optical distributions to place the right amount of light in exactly the place it is required. Expand possibilities with 3-circuit track modules, and join multiple runs together with L, T or X joiners for geometric arrangements. Choose either black or white options to suit your colour scheme.
Features
Warranty: 5 years
Construction: Aluminium (extruded), Arcylic (PMMA)
Metal Finish: Powdercoated
Standard Mounting: Suspended, Surface-mounted
Life Prediction (hrs): L90 @ 60,000 hrs (B50)
Ingress Protection: IP20
Applications
Office
Commercial
Warehousing
Retail
Technical Data
PRODUCT CODE | DIMENSIONS | Luminous Flux | POWER | Optic/Beam | Colour Temperature | Colour Rendering |
|---|---|---|---|---|---|---|
ETR12W27W840 | 1200 x 65 x 72 mm | 4,540 lm | 27 W | Narrow (25deg), Medium (60deg), Wide (90deg), Aisle, Asymmetric | 4000K (3000K, 5000K opt.) | Ra > 80 (> 90 opt.) |
ETR12W40W840 | 1200 x 65 x 72 mm | 6,720 lm | 40 W | Narrow (25deg), Medium (60deg), Wide (90deg), Aisle, Asymmetric | 4000K (3000K, 5000K opt.) | Ra > 80 (> 90 opt.) |
ETR12W50W840 | 1200 x 65 x 72 mm | 8,250 lm | 50 W | Narrow (25deg), Medium (60deg), Wide (90deg), Aisle, Asymmetric | 4000K (3000K, 5000K opt.) | Ra > 80 (> 90 opt.) |
ETR15W33W840 | 1500 x 65 x 72 mm | 5,470 lm | 33 W | Narrow (25deg), Medium (60deg), Wide (90deg), Aisle, Asymmetric | 4000K (3000K, 5000K opt.) | Ra > 80 (> 90 opt.) |
ETR15W50W840 | 1500 x 65 x 72 mm | 8,170 lm | 50 W | Narrow (25deg), Medium (60deg), Wide (90deg), Aisle, Asymmetric | 4000K (3000K, 5000K opt.) | Ra > 80 (> 90 opt.) |
ETR15W65W840 | 1500 x 65 x 72 mm | 10,620 lm | 65 W | Narrow (25deg), Medium (60deg), Wide (90deg), Aisle, Asymmetric | 4000K (3000K, 5000K opt.) | Ra > 80 (> 90 opt.) |
