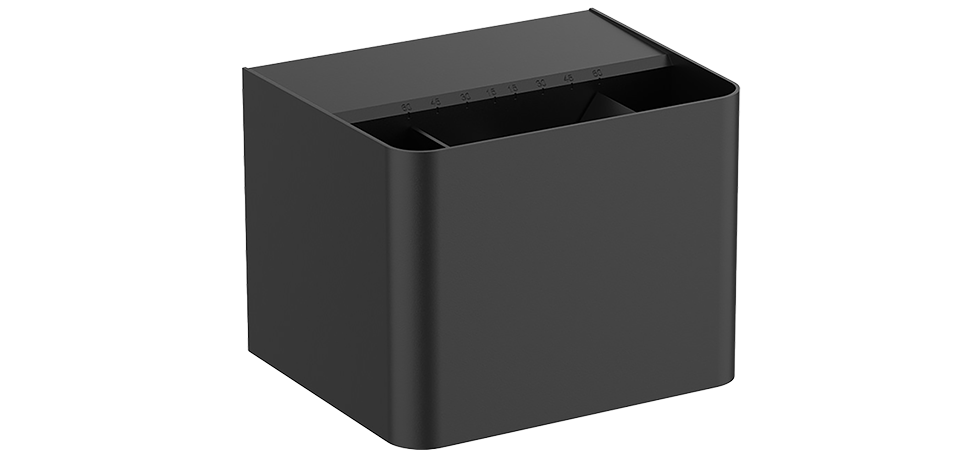

Optacube G2
Few forms could offer more simplicity than the cube, and the OptaCube G2 luminaire combines that classic appearance with highly customisable lighting effects. Adjustable reflector plates in both the up and down directions mean that distributions from a narrow 15 ° right through to a wide 120° can be configured
(and re-configured whenever desired). Robust aluminium construction and an IP54 rating mean that OptaCube G2 can be deployed in a wide range of applications.
Features
Warranty: 5 Yrs
Construction: Cast aluminium body, Polycarbonate lens/cover
Standard Mounting: Wall-mount, interior or exterior (covered) environments
Life Prediction (hrs): L80 @ 69,000 hrs
Ingress Protection: IP54
Applications
Domestic
Commercial
Technical Data
PRODUCT CODE | DIMENSIONS | Luminous Flux | POWER | Optic/Beam | Colour Temperature | Colour Rendering |
|---|---|---|---|---|---|---|
ECU165B15W9030-G2 | Ø165 x 130 x 123mm | Up to 950 lm | 2 X 7.5 W | 15°~120° adjustable | 2700K | 3000K | 4000K | 5000K | >90 |
ECU165B8W9030-G2 | Ø165 x 130 x 123mm | Up to 560 lm | 2 X 4 W | 15°~120° adjustable | 2700K | 3000K | 4000K | 5000K | >90 |
Additional Images
Resources
Data Sheet
Installation Sheet
IES Files
