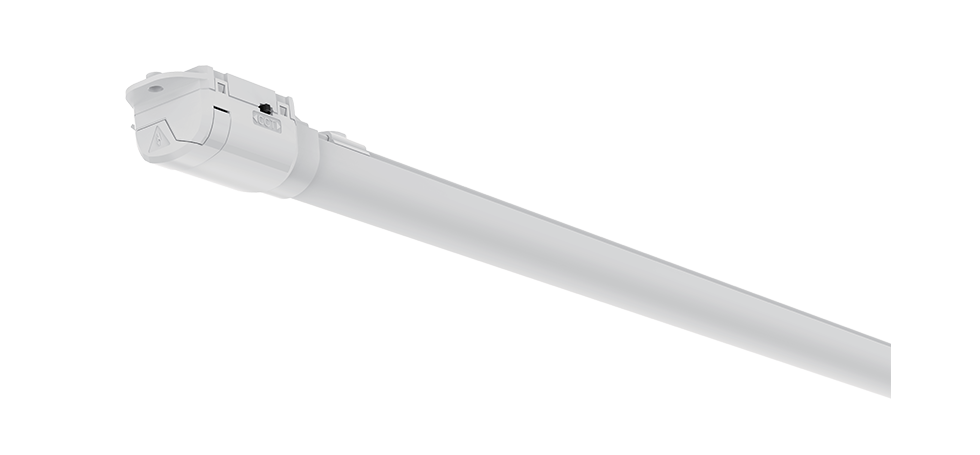

M-Series Linear Module
The M-Series product has particular strengths as an upgrade solution for linear fluorescent fixtures. A fully self-contained module with a direct mains-power connection, two selectable colour temperatures, and two selectable power settings, M-Series unlocks a simple lighting upgrade pathway which minimises waste and extends the useful life of legacy fixtures. Length variants align with T8 and T5 lamp sizes.
Features
Warranty: 5 years
Construction: Polycarbonate (PC), diffuser, and end-caps
Finish: White
Standard Mounting: Retrofit, Surface Mounted via screws or magnetic clips
Life Prediction (hrs): L90 > 53,000 hrs | L80 >110,000 hrs
Ingress Protection: IP20
Impact Protection: IK06
Applications
Retrofit
Technical Data
PRODUCT CODE | DIMENSIONS | Luminous Flux | POWER | Optic/Beam | Colour Temperature | Colour Rendering |
|---|---|---|---|---|---|---|
EMF6008DCT8 | 570 x 33 x 27.5mm | 1,600 lm & 2,100 lm | 9 W & 12 W | 120° | 3000K & 4000K | ≥ 80 |
EMF6008DCT5 | 529 x 33 27.5mm | 1600 lm & 2100 lm | 9 W & 12 W | 120° | 3000K & 4000K | ≥ 80 |
EMF9008DCT8 | 874 x 33 x 27.5mm | 2100 lm & 3200 lm | 12 W & 18 W | 120° | 3000K & 4000K | ≥ 80 |
EMF9008DCT5 | 829 x 33 x 27.5mm | 2100 lm & 3200 lm | 12 W & 18 W | 120° | 3000K & 4000K | ≥ 80 |
EMF12008DCT8 | 1180 x 33 x 27.5mm | 3,200 lm & 4,200 lm | 18 W & 24 W | 120° | 3000K & 4000K | ≥ 80 |
EMF12008DCT5 | 1129 x 33 x 27.5mm | 3,200 lm & 4,200 lm | 18 W & 24 W | 120° | 3000K & 4000K | ≥ 80 |
EMF15008DCT8 | 1480 x 33 27.5mm | 4,300 lm & 5,100 lm | 24 W & 30 W | 120° | 3000K & 4000K | ≥ 80 |
EMF15008DCT5 | 1429 x 33 27.5mm | 4,300 lm & 5,100 lm | 24 W & 30 W | 120° | 3000K & 4000K | ≥ 80 |
