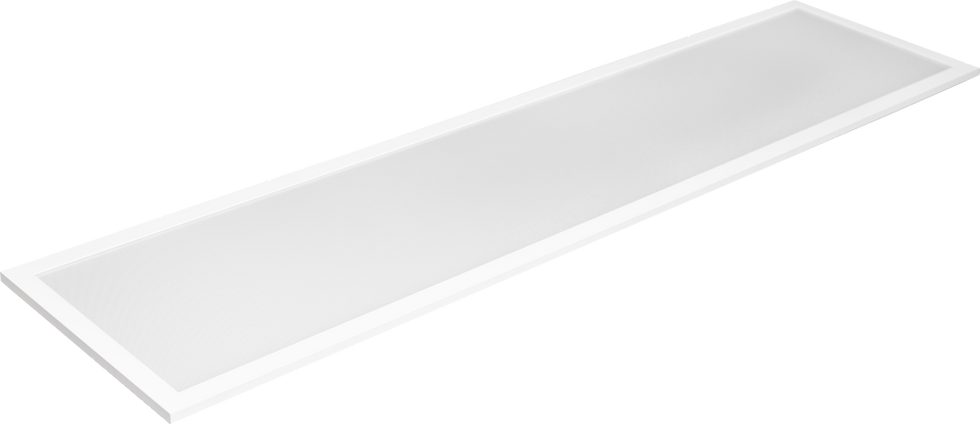

Full-Spectrum Panel G4 IP65

Ecopoint’s fourth generation Edge-Lit Panel adopts the latest LED and driver developments to deliver a highly capable and flexible product family which meets a wide range of end-user requirements. Minimising total-cost-of-ownership was the key development focus; maximising luminaire efficacy, extending component lifetimes, and simplifying both installation and maintenance. Lighting designers can leverage the strong performance and high maintenance factors, while asset managers will appreciate the reduced energy costs, low maintenance demand, and simple logistics.

Features

Warranty: 5 years

Construction: Aluminium (extruded), Arcylic (PMMA)

Metal Finish: Painted

Standard Mounting: Recessed, Surface-mounted, Suspended

Life Prediction (hrs): L80 > 100,000 hrs, L90 > 50,000 hrs

Ingress Protection: IP65

Impact Protection: IK06

Applications

Office

Commercial

Retail

Technical Data
PRODUCT CODE
DIMENSIONS
Luminous Flux
POWER
Optic/Beam
Colour Temperature
Colour Rendering
EEP6X6WS40G4-IP65
595 x 595 x 38.5 mm
2,200-3900 lm
22-39 W
-
4000K
≥95
EEP12X3WS40G4-IP65
1195 x 295 x 38.5 mm
2,200-3900 lm
22-39 W
-
4000K
≥95
Additional Images
Resources

Data Sheet

Instruction Sheet
