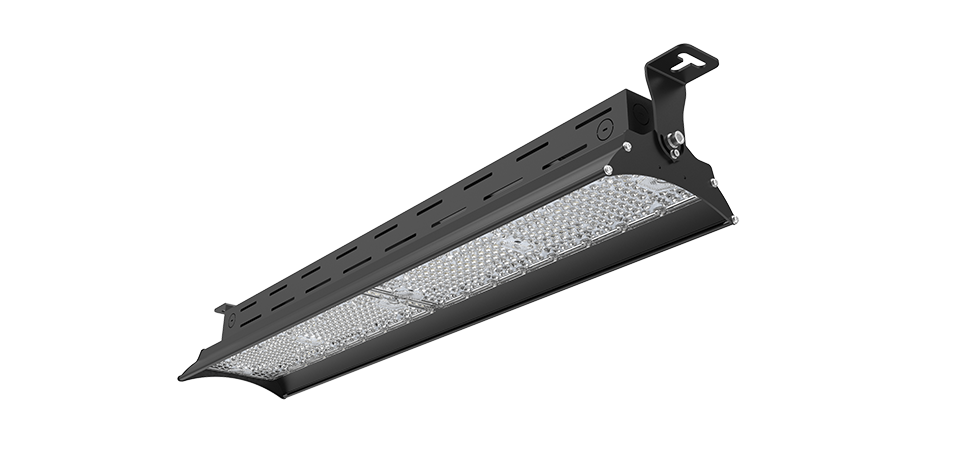

Acuto Low-Glare Linear High-Bay
The Acuto high-bay luminaire brings a genuine low-glare option to applications where higher mounting points or higher illuminance requirements demand high flux packages. Precision lenses combine with shielding from the luminaire body to deliver light with high levels of efficiency and visual comfort. With optical, electrical and thermal design optimised, Acuto will perform reliably for years.
Features
Warranty: 5 years
Construction: Polycarbonate lens, Aluminium (extruded)
Metal Finish: Silver(Powdercoated), Others on project request
Standard Mounting: Surface-mounted, Suspended
Life Prediction (hrs): L90 > 43,000 hrs (440mm), L80 > 89,000 hrs (440mm)
Ingress Protection: IP65
Impact Protection: IK08
Applications
Industrial
Commercial
Warehousing
Schools
Technical Data
PRODUCT CODE | DIMENSIONS | Luminous Flux | POWER | Optic/Beam | Colour Temperature | Colour Rendering |
|---|---|---|---|---|---|---|
EAC440S100W940 | 440 x 178 x 91 mm | 15,273 lm -16,295 lm | 100 W | UNB(25deg) / VNB(40deg) / NB(60deg) / MB(90deg) / AB(30degX70deg) | 4000K | ≥97/ ≥97 / ≥90 / ≥50 |
EAC440S150W940 | 150 x 178 x 91 mm | 22,095 lm - 23,855 lm | 150 W | UNB(25deg) / VNB(40deg) / NB(60deg) / MB(90deg) / AB(30degX70deg) | 4000K | ≥97/ ≥97 / ≥90 / ≥50 |
EAC500S200W940 | 500 x 178 x 91 mm | 29,446 lm - 30,792 lm | 200 W | UNB(25deg) / VNB(40deg) / NB(60deg) / MB(90deg) / AB(30degX70deg) | 4000K | ≥97/ ≥97 / ≥90 / ≥50 |
EAC880S300W940 | 880 x 178 x 91 mm | 45,949 lm - 48,642 lm | 300 W | UNB(25deg) / VNB(40deg) / NB(60deg) / MB(90deg) / AB(30degX70deg) | 4000K | ≥97/ ≥97 / ≥90 / ≥50 |
Additional Images
Resources
Data Sheet
